설명

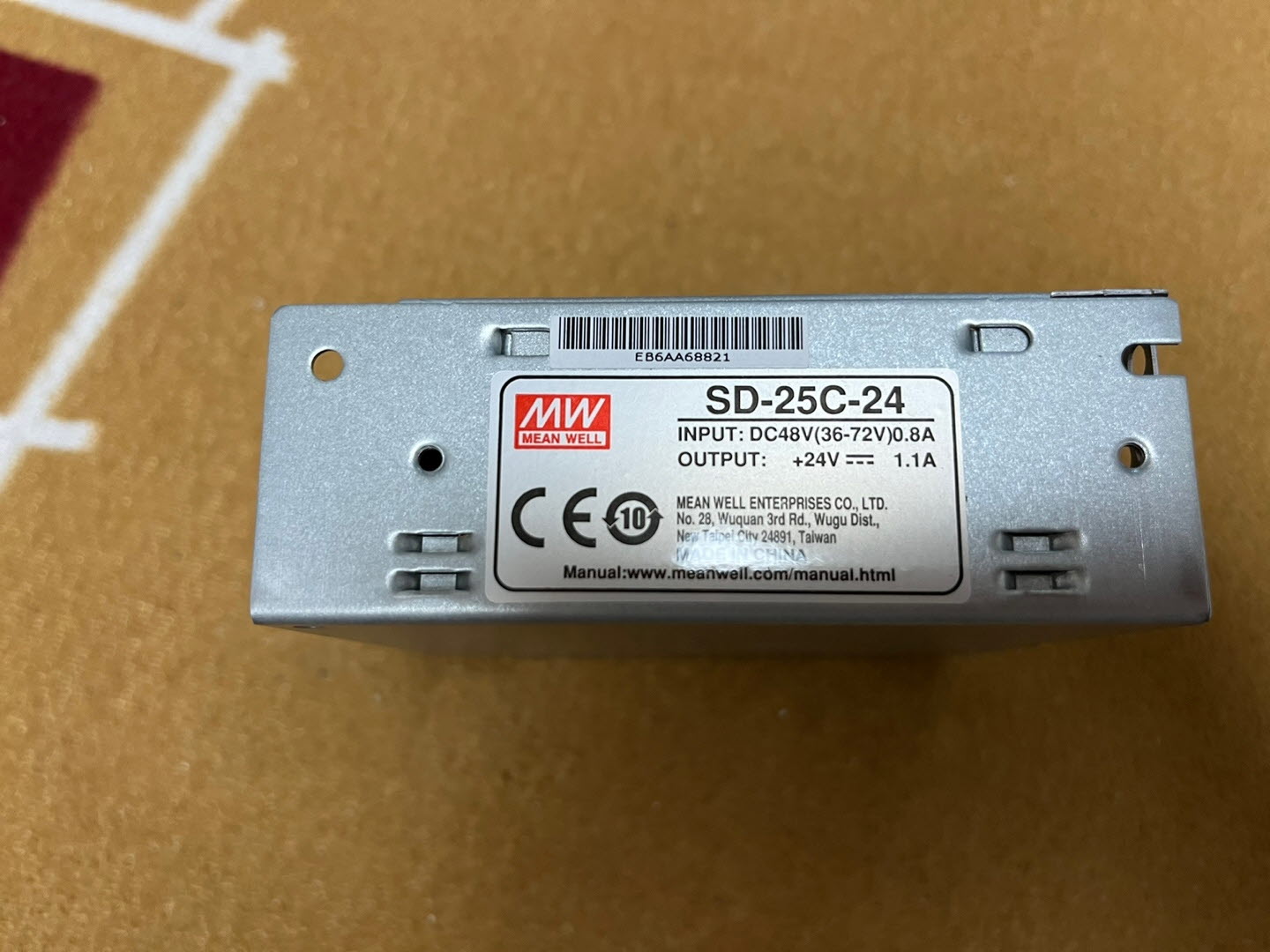

SD-25C-24
- Input: DC48V(36~72)0.8A
- Output: +24V 1.1A (19.25~33.26V)
- 제조국: 홍콩
상품필수정보
| 제조사 | MEAN WELL USA Inc. |
|---|---|
| MPN | SD-25C-24 |
| 간략설명 | DC/DC CONVERTER 24V 26W / Digi-Key Part Number : 1866-1068-ND |
| 문서 자료 | Datasheet |
Specification
| TYPE | Enclosed |
|---|---|
| VOLTAGE – INPUT (MIN) | 36V |
| VOLTAGE – INPUT (MAX) | 72V |
| NUMBER OF OUTPUTS | 1 |
| VOLTAGE – OUTPUT 1 | 24V |
| VOLTAGE – OUTPUT 2 | – |
| VOLTAGE – OUTPUT 3 | – |
| VOLTAGE – OUTPUT 4 | – |
| CURRENT – OUTPUT (MAX) | 1.1A |
| POWER (WATTS) | 26W |
| VOLTAGE – ISOLATION | 1500V |
| APPLICATIONS | ITE (Commercial) |
| EFFICIENCY | 81% |
| OPERATING TEMPERATURE | -10°C ~ 60°C (With Derating) |
| MOUNTING TYPE | Chassis Mount |
| SIZE / DIMENSION | 3.90″ L x 3.82″ W x 1.42″ H (99.0mm x 97.0mm x 36.0mm) |
